GMRA · Our radio infrastructure

Our Repeaters

Two VHF repeaters serving Prince George’s County, the Washington, DC metropolitan area, and surrounding communities.

The Green Mountain Repeater Association operates and maintains two VHF repeaters. Both use a 77.0 Hz PL tone and a standard −600 kHz offset. See the individual repeater details below.

Notice: The WSSC water tank that the 146.880 repeater antenna is normally mounted to the top of is undergoing rehabilitation which required the removal of all communications antennas.  We were able to temporarily mount it on a mast behind the repeater shack, but it is only 15' above the ground, so the range is greatly diminished.  As soon as WSSC has completed the repairs, the antenna will be placed back in its normal position, 90' above the ground.  In the meantime, please use our Bladensburg, MD repeater on 146.610 MHz and/or Echo Link Node #796114.

Important: Transmit a 77.0 Hz PL tone.

Your radio must transmit the PL tone to access either repeater. Simply listening with a tone enabled is not sufficient.

K3GMR · Bladensburg

146.610 MHz

WSSC water tank · Bladensburg, Maryland
Repeater output
146.610 MHz
Radio transmit
146.010 MHz
Offset
−0.600 MHz
Required PL
77.0 Hz
Location
4907 56th Place
Bladensburg, MD 20710
Equipment
Motorola Quantar · 125 W
Installed
March 10, 2024
EchoLink
Connected full time
W3GMR · Greenbelt

146.880 MHz

WSSC water tank · Greenbelt, Maryland
Repeater output
146.880 MHz
Radio transmit
146.280 MHz
Offset
−0.600 MHz
Required PL
77.0 Hz
Location
211 Ridge Road
Greenbelt, MD 20770
Equipment
Motorola Quantar · 125 W
Installed
October 8, 2023
EchoLink
Connected full time

Equipment & Coverage

Each site includes a repeater, Sinclair duplexer, Link Communications controller, battery or generator backup power, and a four-element vertical dipole antenna approximately 300 feet above sea level.

Modernized repeater equipment

The original 100-watt Motorola Micor repeaters were replaced with 125-watt Motorola Quantar units to improve long-term reliability.

October 8, 2023Greenbelt’s Motorola Quantar installed.
March 10, 2024Bladensburg’s Motorola Quantar installed.

Repeater features

Both repeaters are now equipped with Echo Link for world-wide communications full time.

Repeater Photos

Here are a few pictures from our two repeater sites.  For a complete set of photos of both sites and the water tank area around them, click here.

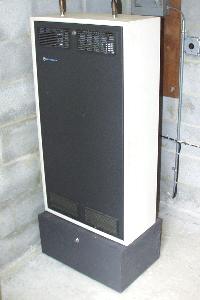

Original Motorola Micor repeater at the Bladensburg site
Original Motorola Micro Repeaters used at both sites
Original Motorola Micor repeater at Greenbelt

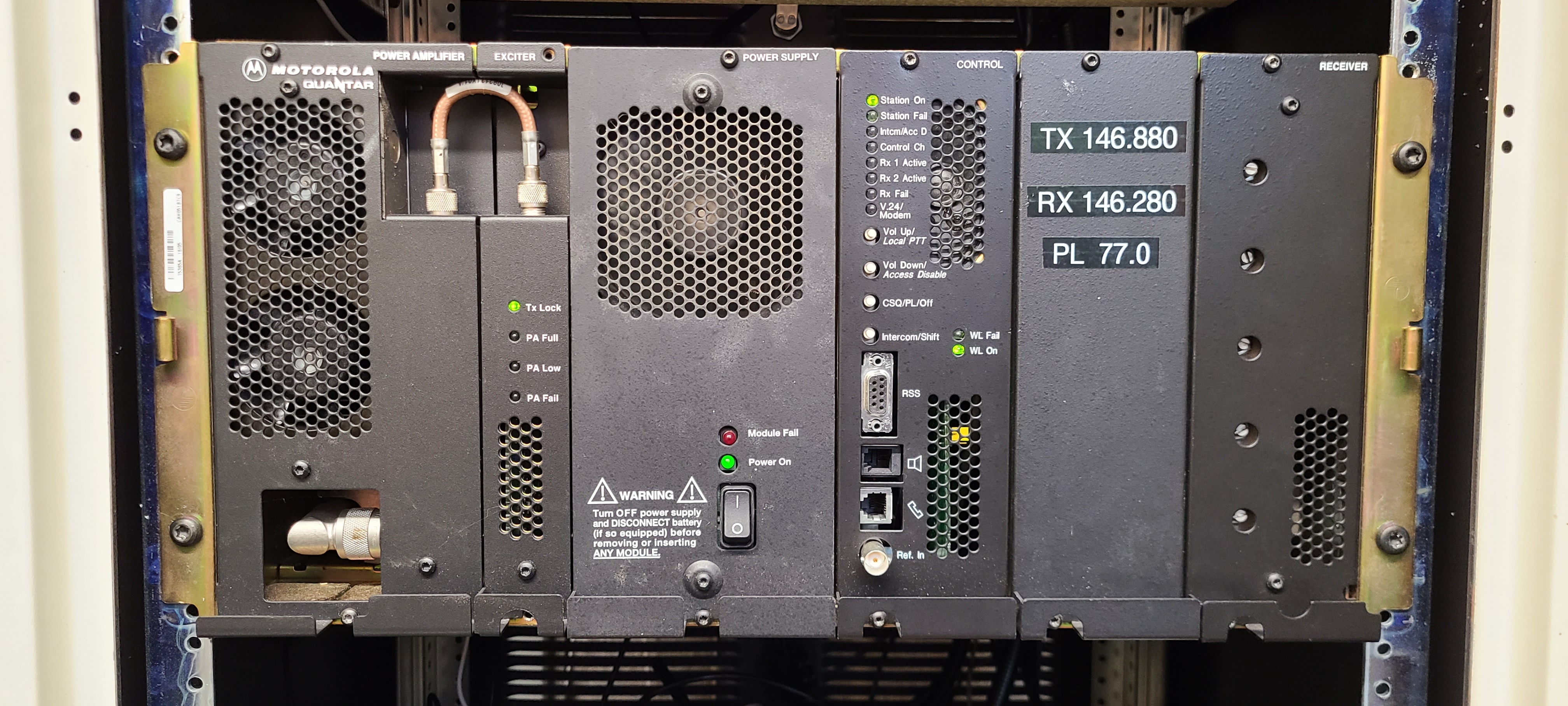

New Motorola Quantar 125W Repeater - 146.880 site

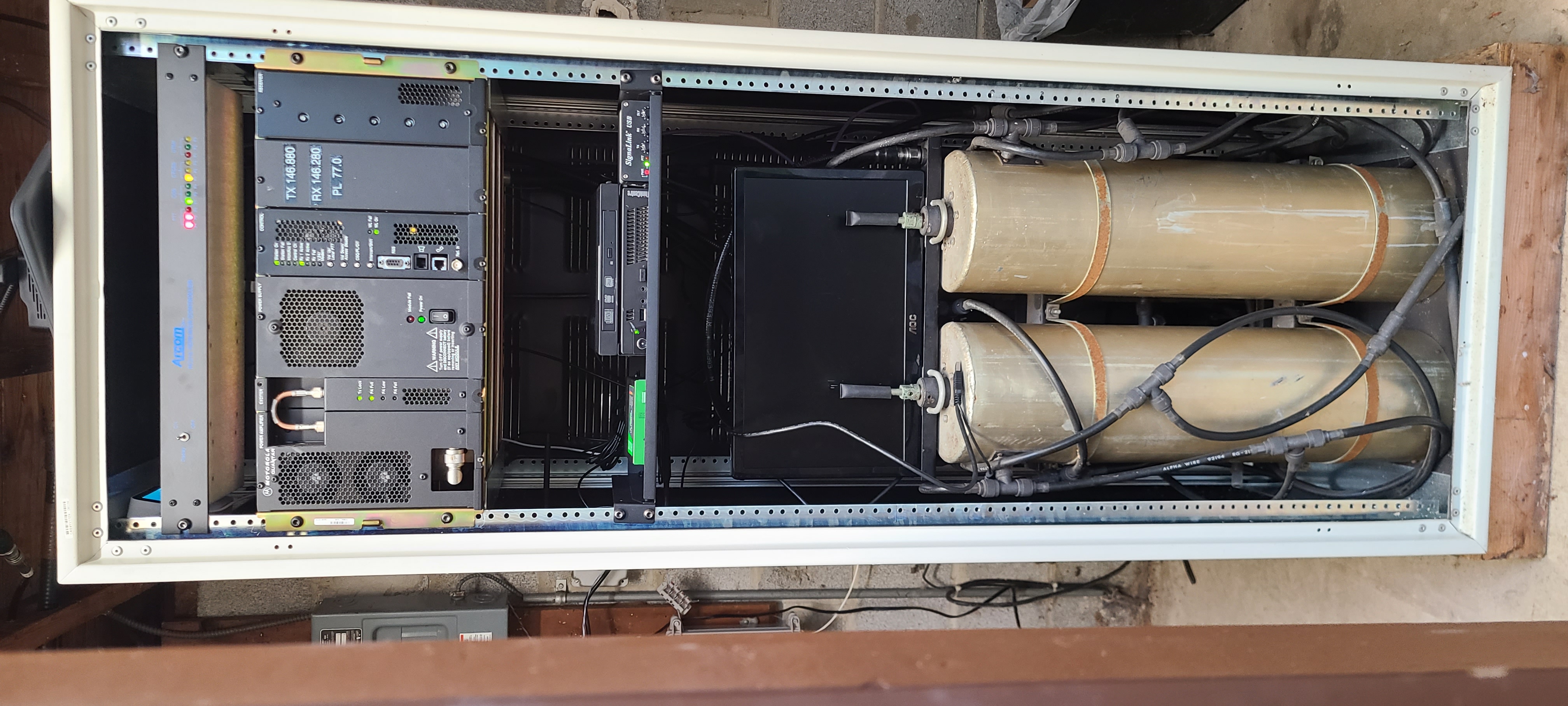

Motorola Quantar repeater equipment
Replacement Motorola Quantar equipment

Public Service & Emergency Communications

GMRA’s repeaters support the amateur radio community during emergencies. The association has been affiliated with the Amateur Radio Emergency Service (ARES) and Radio Amateur Civil Emergency Service (RACES), including local emergency management activities in Prince George’s County.
